Product Number:

CSE-CA-1R4-00S1WN-00

Manufacturer:

Thermaltake

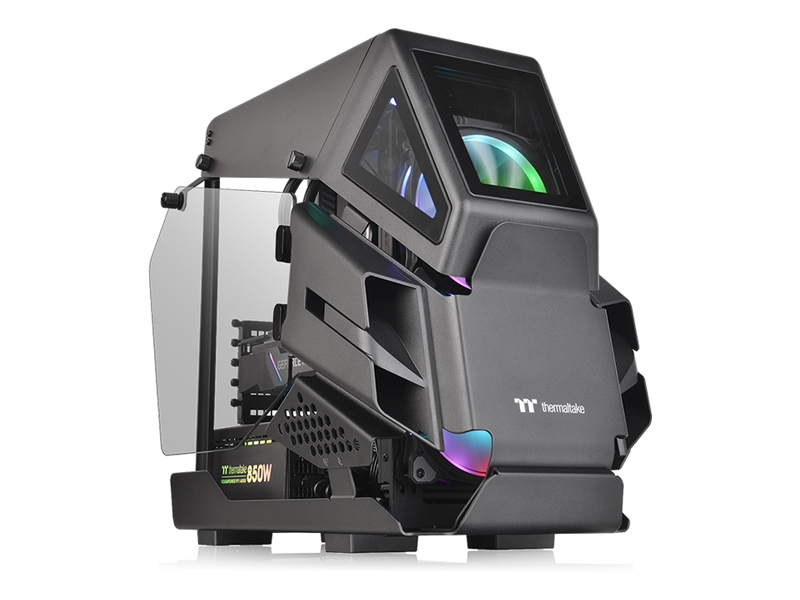

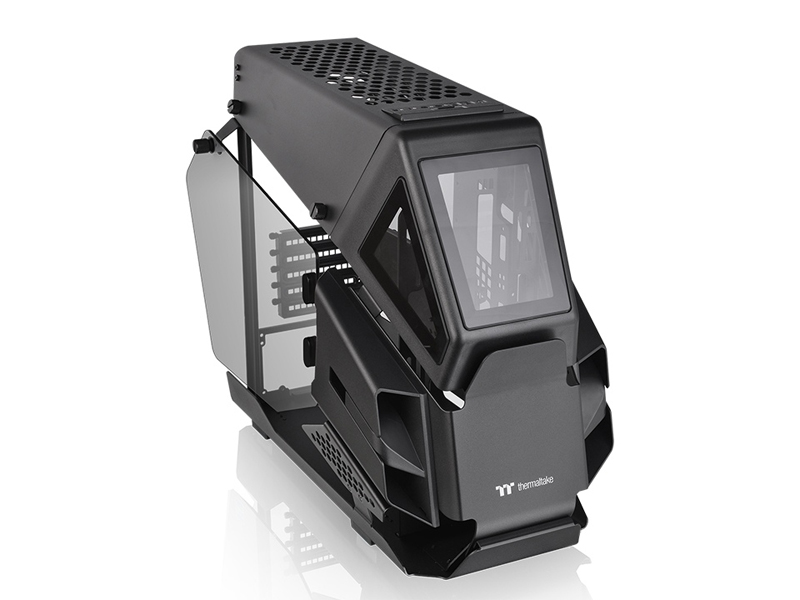

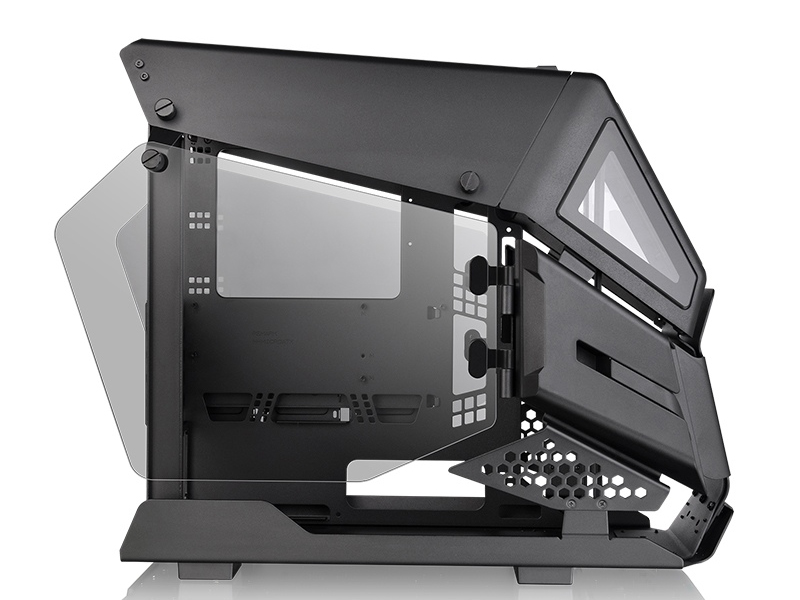

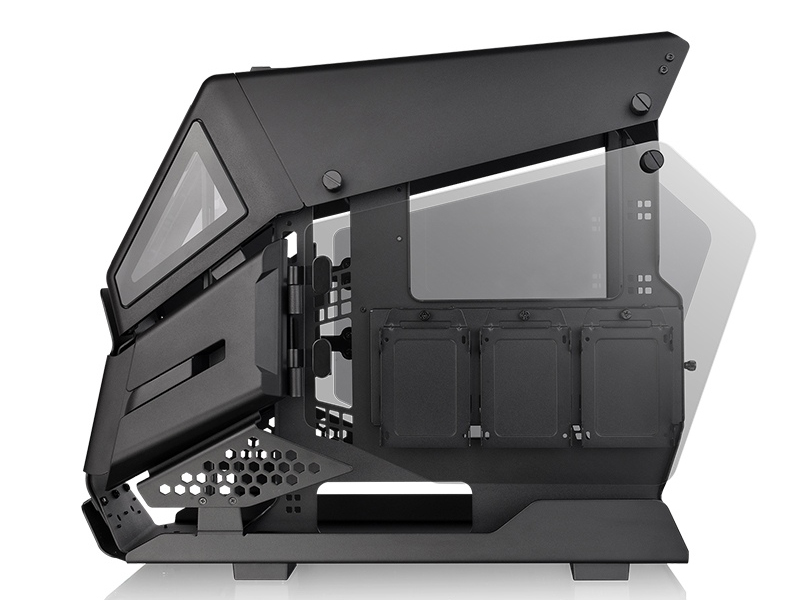

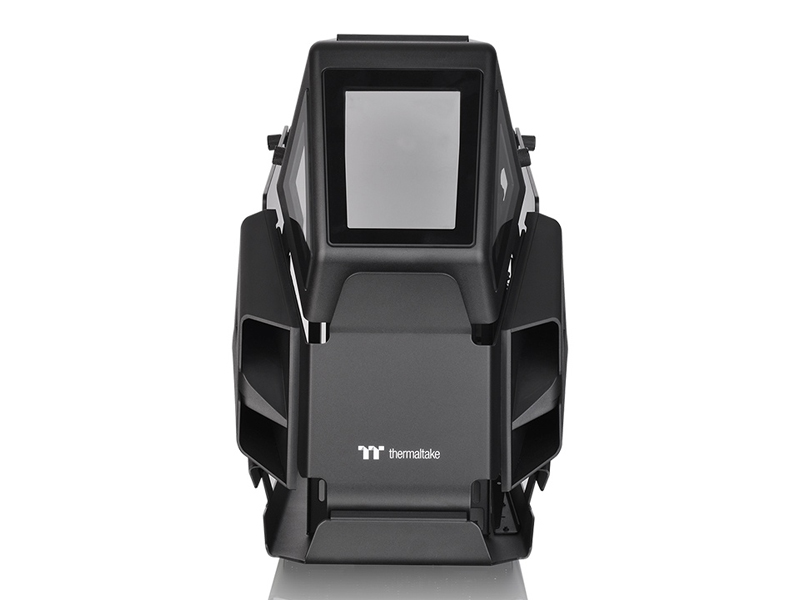

The Thermaltake AH T200 is a helicopter styled open frame micro chassis which comes with two 4mm tempered glass panels on left and right sides and can support motherboards up to Micro ATX.

•   P/N: CA-1R4-00S1WN-00

•   SERIES: AH Series

•   MODEL: AH T200

•   CASE TYPE: Micro Case

•   DIMENSION (H X W X D): 444.2 x 282 x 551.5 mm / (17.5 x 11.1 x 21.7 inch)

•   NET WEIGHT: 10.8 kg / 23.8 lb

•   SIDE PANEL: Tempered Glass x 2

•   COLOR: Black

•   MATERIAL: SPCC

•   COOLING SYSTEM: N/A

DRIVE BAYS

•   -ACCESSIBLE: 2 x 3.5" or 3 x 2.5” (3.5” HDD thickness limitation: 22mm)

•   -HIDDEN: -

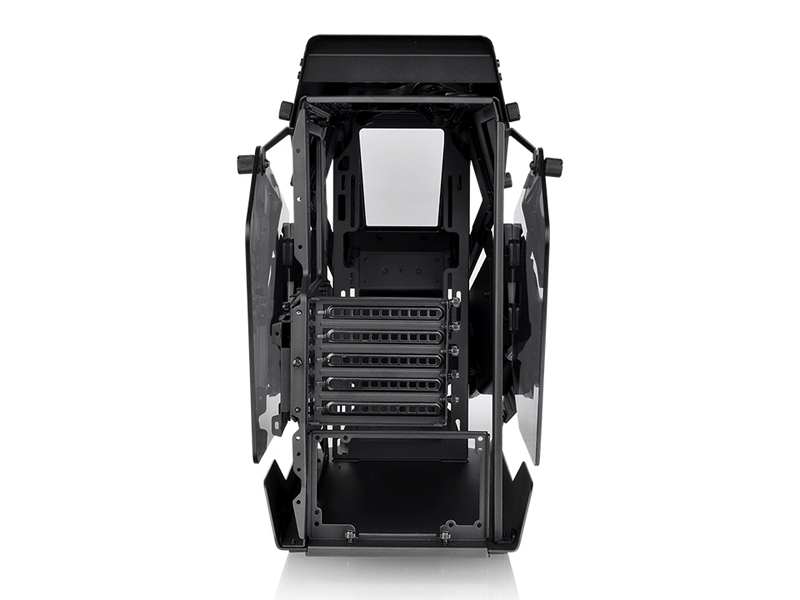

EXPANSION SLOTS

•   5

MOTHERBOARDS

•   6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX)

I/O PORT

•   USB 3.1 (Gen 2) Type C x 1, USB 3.0 x 2, HD Audio x 1

PSU

•   Standard PS2 PSU (optional)

FAN SUPPORT

•   Front: 2 x 120mm or 1 x 120mm, 2 x 140mm or 1 x 140mm

•   Top: 2 x 120mm or 1 x 120mm, 2 x 140mm or 1 x 140mm

RADIATOR SUPPORT

•   Front: 1 x 240mm or 1 x 120mm, 1 x 280mm or 1 x 140mm

CLEARANCE

•   CPU cooler max height: 150mm

•   VGA max length: 320mm

•   PSU max length: 180mm

•   3.5” HDD thickness limitation: 22mm
