CM MASTERBOX Q300L MATX W/ACRYLIC SIDE PANEL MINI TOWER(038006)

Product Number:
CSE-MCB-Q300L-KANN-S00
Manufacturer:
COOLER MASTER
« Back to result

Choose Your Style

The MasterBox Q300L is your straightforward option in the MasterBox Q-series from Cooler Master, a series that might be small in size but excels in functionality, modularity, and thermal performance.

Cooler Master

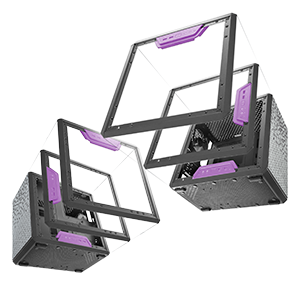

System Flexibility

The I/O panel can be adjusted to six different locations—on both side of the body you can install the I/O panel at the front, top or bottom.

Cooler Master

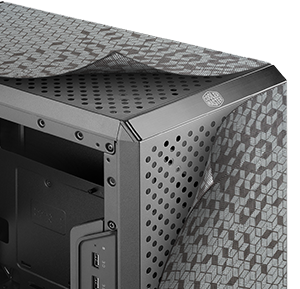

Magnetic Dust Filters

Patterned magnetic filters create a unique look for your chassis while keeping your system's internals free from excess dust.

Cooler Master

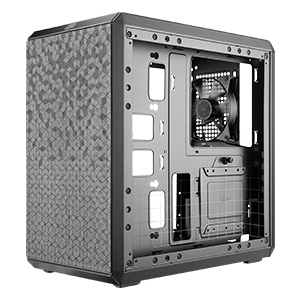

Small Form Factor, ATX PSU Support

Despite the Micro-ATX form factor and the body depth/height of only 370 x 370mm, the MasterBox Q300L can accommodate a normal ATX PSU.

Cooler Master

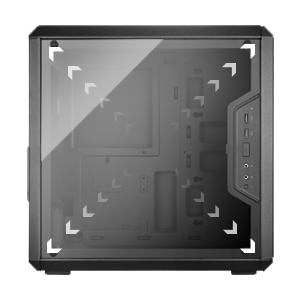

Edge-to-Edge Acrylic Side Panel

Show off your build through the full size transparent side panel.

Cooler Master

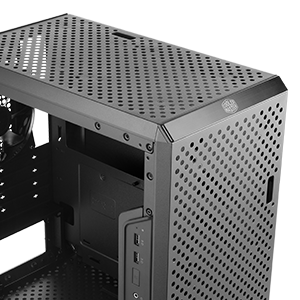

Thermal Performance

The open design of the perforated front, top, and bottom guarantees excellent thermal performance.

Cooler Master

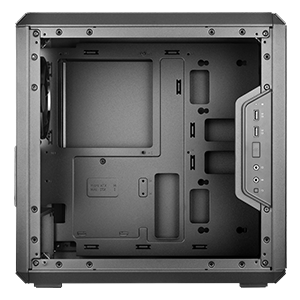

Routing Space

A space 28mm-wide behind the motherboard tray offers open space for hidden cable management.

Specifications
Product Name MasterBox Q300L
Product Number MCB-Q300L-KANN-S00
Available Color Black
Materials Steel, Plastic
Dimensions (LxWxH) 387 x 230 x 378mm
Motherboard Support Micro-ATX, Mini-ITX
Expansion Slots 4
Drive Bays 5.25" 0
3.5" HDD 1
2.5" SSD 2
I/O Port USB 3.0 x 2, Audio In / Out
Pre-installed Fan(s) Front N/A
Rear 120mm x 1
Fan Support Front 120 / 140mm x 2
Top 120mm x 2
Rear 120mm x 1
Bottom 120mm x 1
Radiator Support Front 120mm x 1 / 240mm x 1
Rear 120mm x 1
Clearances CPU Cooler 157mm
PSU 160mm
GPU 360mm
Cable Routing Behind MB Tray 28mm
Power Supply Support Bottom mount, ATX PS2
EAN Code 4719512065488
UPC Code 884102038006
